C2.2B Genset

C2.2B Genset

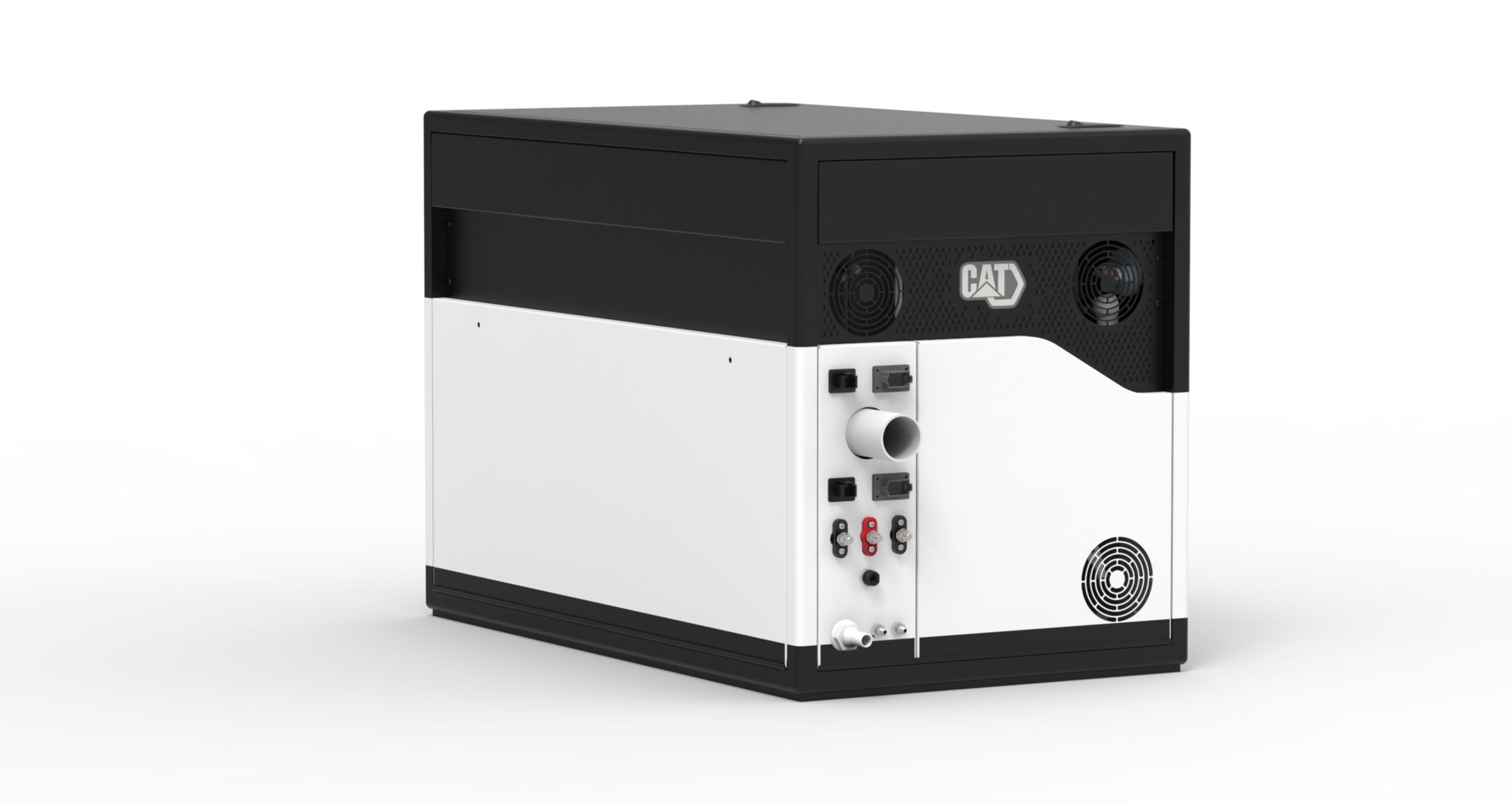

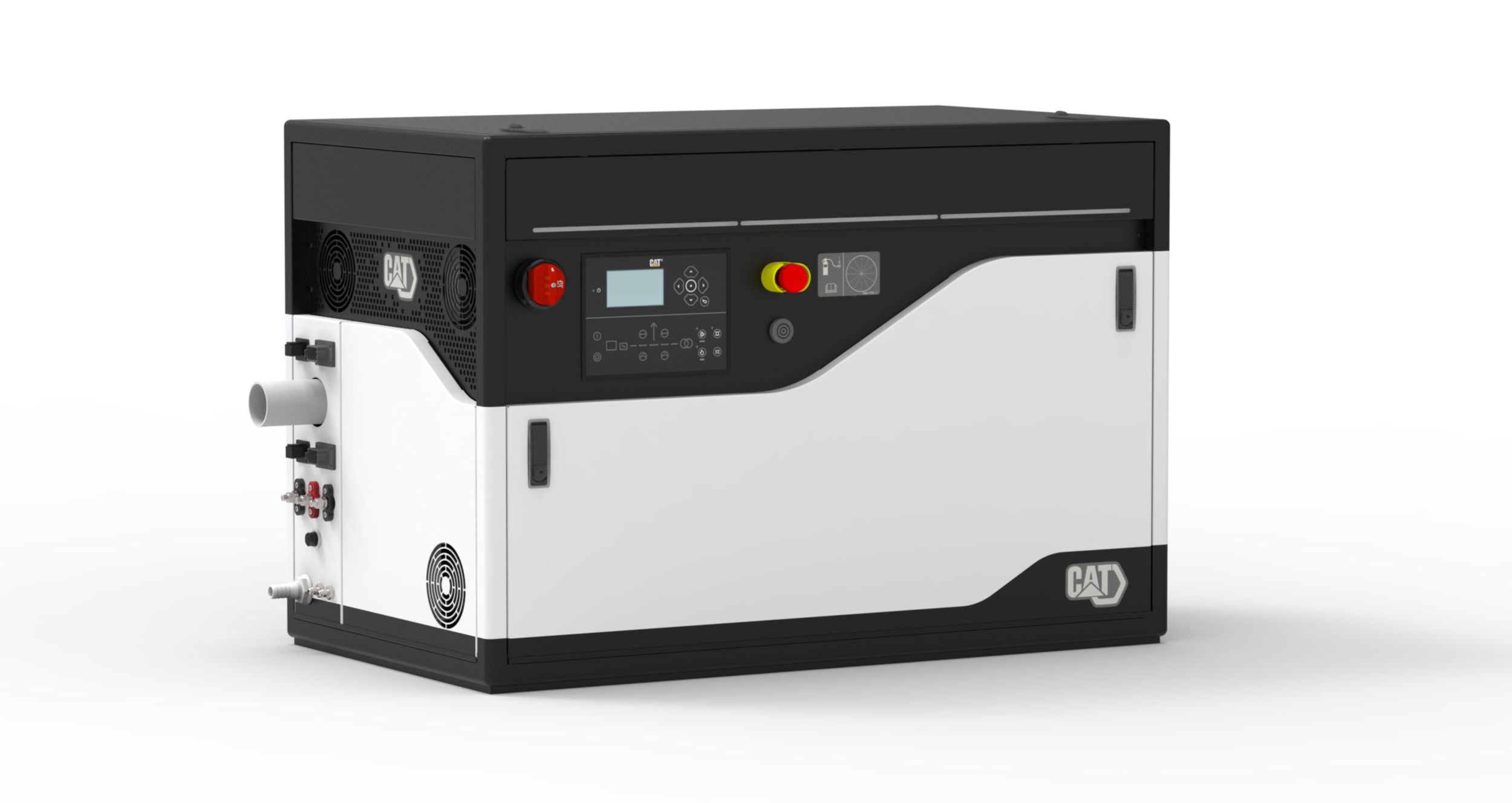

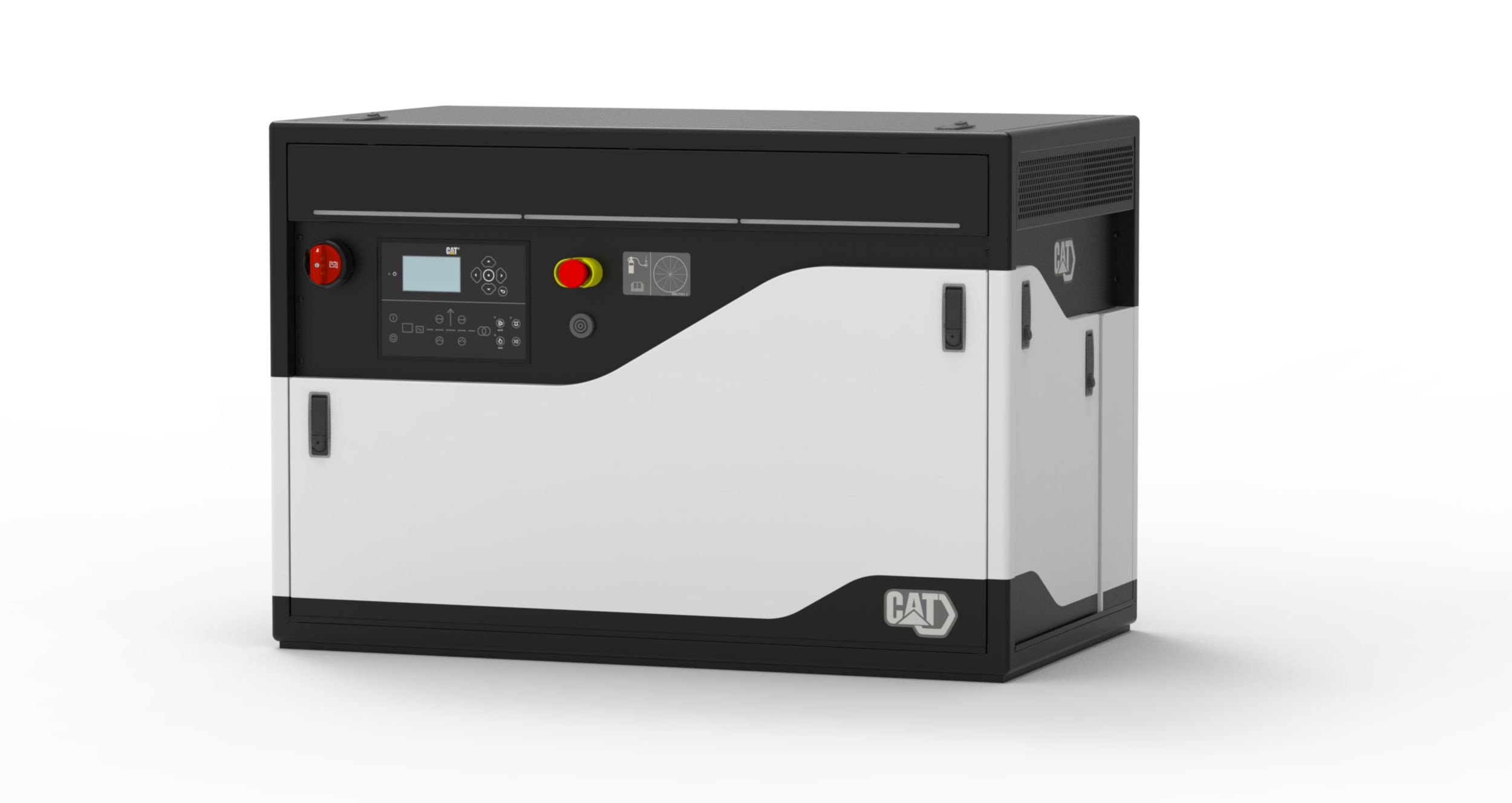

Cat® C2.2B Marine Generator is designed for advanced functionality. This low-noise, intelligent, and future-ready genset can be sold independently or as part of Cat Marine product solutions. The flexible design ensures seamless installation and single-side servicing foreasy maintenance. The Cat C2.2B allows for the integration of multiple power sources, from shore power to batteries, ensuring an uninterrupted power supply. It meets U.S. EPA Tier 3 emissions standards at an engine speed of 1800 rpm, delivering up to 26 KWe of power. The enclosure is 20% smaller compared to the C2.2, offering a more compact footprint without compromising performance.

Power Range 16 - 26 ekW 16 - 26 ekW
Frequency 50 / 60 50 / 60
Emissions U.S. EPA Tier 3 U.S. EPA Tier 3

Teknik Özellikler

Power Rating
Power Range 16 - 26 ekW 16 - 26 ekW
Generator Set Specifications
Frequency 50 / 60 50 / 60
Minimum Rating 16 ekW (18.75 kVA) 16 ekW (18.75 kVA)
Maximum Rating 26 ekW (31.25 kVA) 26 ekW (31.25 kVA)
Speed 1500 / 1800 rpm 1500 / 1800 rpm
Engine Specifications
Emissions U.S. EPA Tier 3 U.S. EPA Tier 3
Configuration Inline 4, 4- Stroke Cycle Diesel Inline 4, 4- Stroke Cycle Diesel
Rated Engine Speed 1500 / 1800 rpm 1500 / 1800 rpm
Displacement 135 in³ 2.2 l
Aspiration Naturally Aspirated / Turbocharged Naturally Aspirated / Turbocharged
Governor Type Electrical Ischronous Electrical Ischronous
Flywheel Housing SAE No. 04 SAE No. 04
Bore 3.31 in 84 mm
Stroke 3.5 in 100 mm
Refill Capacity Lube Oil System with Oil Filter Change: 10.6 L (2.8 gal) Lube Oil System with Oil Filter Change: 10.6 L (2.8 gal)
Oil Change Interval 500 hours 500 hours
Rotation from Flywheel End Counterclockwise Counterclockwise
Cooling Heat Exchanger Cooled Heat Exchanger Cooled
Dimensions & Weights
Length 43.3 in 1100 mm
Height 740 mm 29.1 in
Width 24.7 in 628 mm
Maximum Engine Dry Weight 1036 lb 480 kg

Avantaj ve Özellikler

Sound

  • Sound enclosure ideal for yachting vessels for quiet operation

Compact size

  • Compact size increases installation options

Designed for easy integration and maintenance

  • Optimal handed connection panel simplifies engine room plumbing and cuts install time
  • Single side serving for easy maintenance

Digital Control System ensures easy operation

  • Smart communication ensures seamless connectivity with digital vessel control systems

Over 80 Years of Manufacturing Experience

  • For over 80 years, Cat® marine engines have been selected by customers to help them succeed on the water. With over 200,000 engines in operation, and network, our team has experience and dedication to provide reliable solutions, unmatched technology, and support.

Product Support through Global Dealer

  • Trained dealer technicians
  • Your Cat dealer will listen to your unique needs and find the right solution for your business, budget and goals
  • Cat parts and labor warranty Preventative maintenance agreements available for repair

Standart Donanımlar

  • Standard Equipment
    • Sound Attenuation Enclosure
    • Digital control panel
    • Self-priming fuel lift pump
    • 12 or 24 volt system
    • Single sided service points
    • Water-cooled exhaust manifold
    • Wet exhaust
    • Single or brushless generator
    • Anti-vibration mounts

İsteğe Bağlı Donanımlar

  • Optional Equipment
    • Double wall fuel injection lines
    • Vessel connection Panel
    • Siphon break
    • AC circuit breaker
    • Load share control panel
    • Load share junction box
